以呈缠绕在管材中分布的高强度钢丝为增强骨架，其内外层以高密度聚乙烯为基体，并通过热熔胶复合经连续挤出成型的新型环保管材。其中，给水用管材、管件代号L；燃气用管材、管件代号Q；特种流体用管材、管件代号T。 |

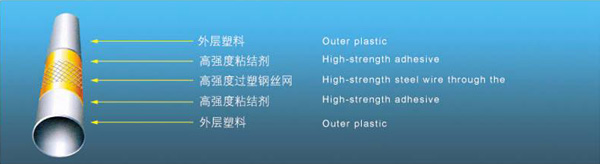

Make the high strength steel mesh which is entwining and distributing aroud pipe as the reinforce framework,based on the high density polyethylene on the exterior,in combination with hot melting adhesive,through successive extrusion molding,to form the new environment-friendly pipe.Hereinto,L is used for the code name of water supply pipe and pipe fittings;Q is used for the code name of fuel gas pipe and pipe fittings:T is used for the code name of special fluid pipe and pipe fittings. |
1、强度高、抗冲击性强；
2、防腐蚀，导热系数低；
3、内壁光滑、不结垢、水头损失小；
4、重量轻、施工方便、性能可靠；
5、卫生无毒，使用寿命可达50年。 |
1.Hith strength,strong impact resistance;
2.Anticorrosion,low thermal conductivity;
3.Smooth interior wall ,no scaling formation,small head loss of flow transporting;
4.Light in weight,it is convenient for construction;high reliable performance;
5.Heath,no toxicity,using life is over 50 years. |
公称外径mm
Nominal diameter |
50 |
63 |
75 |
90 |
110 |
140 |
160 |
200 |
225 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
钢丝最小直径mm
Minimum diameter wire |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
1.0 |
公称压力(MPa)
Nominal pressure |
0.4-3.5 |
|
电热熔连接
Electric hot-melt Connection |
 |
法兰连接
Flanged |
 |
|

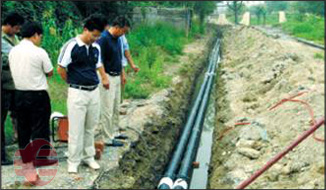

产品广泛应用于化工、油田、矿山、码头、纺织、市政，有色金属冶炼，农业灌溉、造船、海水输送，热电工程的回水、废渣输送，埋地排水管、电缆导管等。 |
Our products are widely applicable for chemical industry,oilfield,mine,wharf,textile,municipal construction,non-ferrous metal smelting,agricultural irrigation,shipbuilding,seawater transporting,backwater pipes for thermal engineering,waste residue transporting,per-buried drainage pipes,guide pipes for power cable. |
